Details
Features:
- D-PRE mic preamps deliver clean, transparent, and natural sound
- 3-band EQ on all mono channels for sound-shaping
- 1-knob compressors provide straightforward dynamics control
- Class-compliant USB 2.0 for recording and playback with computers and tablets
- SPX effect processors provide you with a comprehensive suite of 24 effects
- Pad switch on mono inputs for managing loud sources
- Metal chassis for durability
Specs:
- Type: Analog
- Channels: 20
- Computer Connectivity: USB (2 x 2)
- Faders: 16 + 2 + 1
- Inputs – Mic Preamps: 12 x TRS/XLR Combo, 4 x XLR
- Phantom Power: 20
- Inputs – Line: 4 x TRS, 4 x RCA

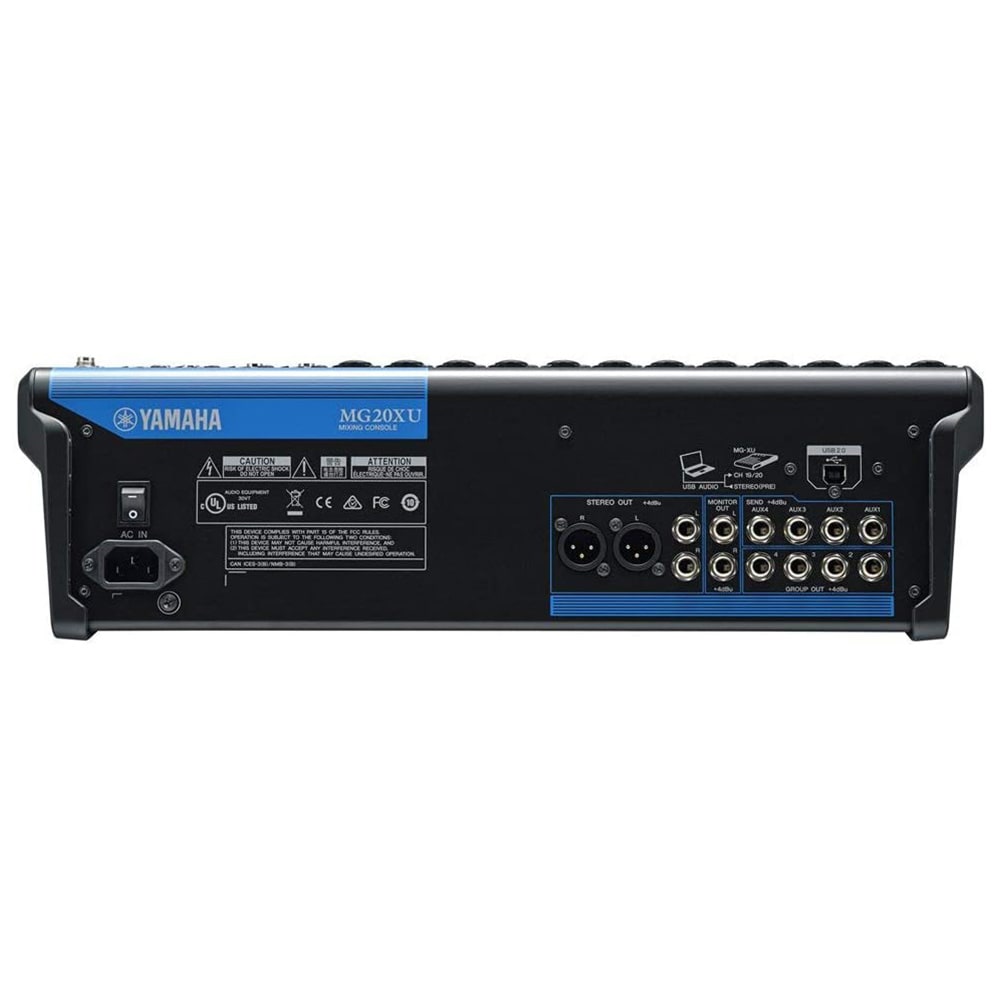

- Outputs – Main: 2 x XLR, 2 x TRS
- Outputs – Direct: 2 x TRS (Monitor)
- Outputs – Other: 4 x TRS (Bus)
- Aux Sends: 2 x Pre/Post, 2 x Post
- Send/Return I/O: 4 x TRS (Sends)
- Busses/Groups: 4 x Bus
- Headphones: 1 x 1/4″
- USB: 1 x Type B
- EQ Bands: 3-Band, Sweepable
- Mid Effects: Yes
- Rackmountable: Yes
- Height: 5.1″
- Width: 17.5″
- Depth: 19.7″
- Weight: 15.7 lbs.

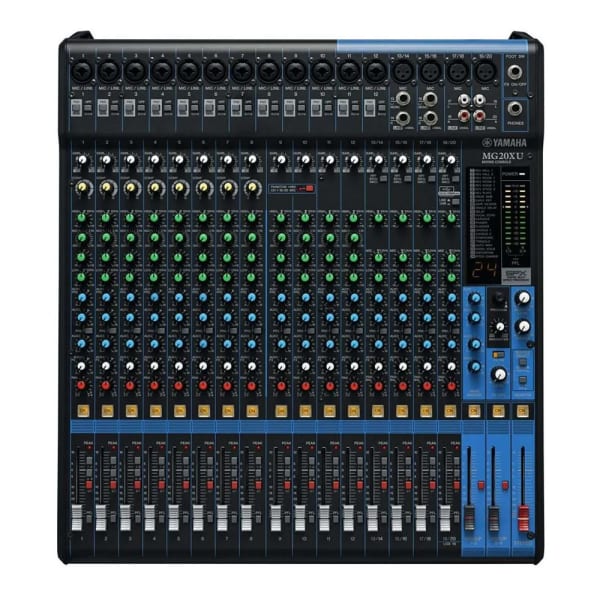

The Yamaha MG20XU analog mixer is well-suited for portable rigs or permanent installations, with its rich features and outstanding sound quality.
